V5 Pneumatics Kit
VEX V5kit276-8750

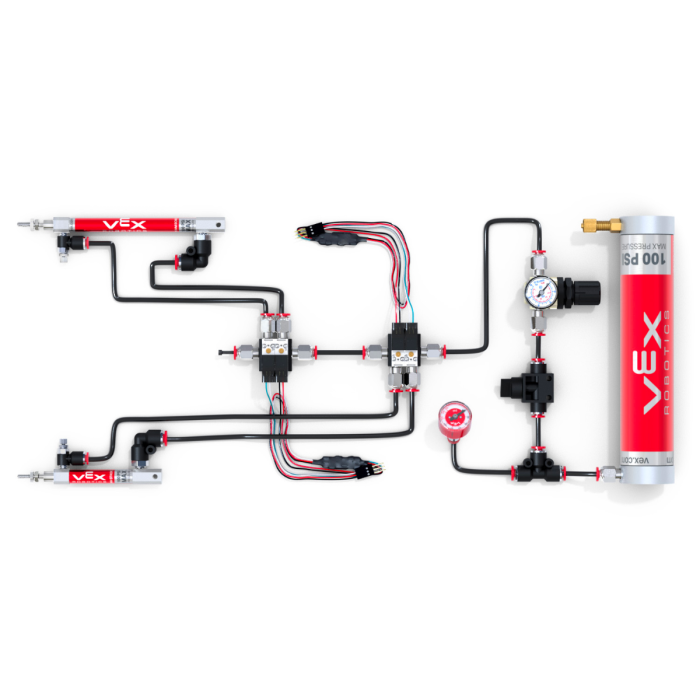

This kit contains everything needed to get a classroom or VEX Robotics Competition team up and running with Pneumatics. Pneumatics deliver fast and powerful linear motion that is useful in a variety of applications. Use pneumatics to power your robot's claw, intake deployment, or any mechanism that requires quick motion. In particular, pneumatics are useful in applications requiring only two positions (open/closed, up/down, etc.) Please note that the following items are not listed in kit contents: (10) Straight Male Fittings (1) Valve Stem (10) 4mm Plugs Please refer to the official website content list and articles for details of the parts.

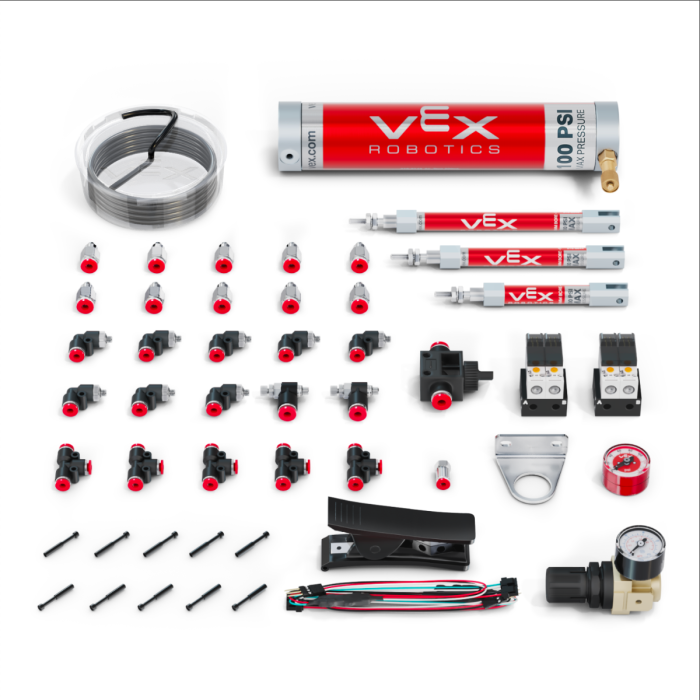

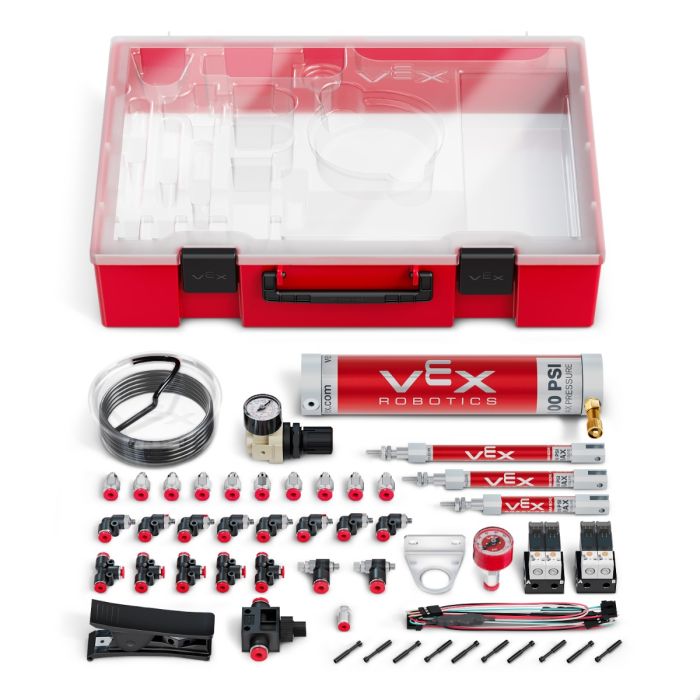

16 unique parts · 30 total pieces
| Qty | Part | SKU | |
|---|---|---|---|
| (2) | Air Flow Valve Fittings | 276-8639-001 | |
| (1) | Air Tank 200ml | 276-8749 | |
| (1) | Double Acting Solenoid | 276-8752-000 | |
| (1) | Dual Acting Cylinder, 10mm Bore, 25mm Stroke | 276-8642 | |
| (1) | Dual Acting Cylinder, 10mm Bore, 50mm Stroke | 276-8644 | |
| (1) | Dual Acting Cylinder, 10mm Bore, 75mm Stroke | 276-8646 | |
| (10) | Pneumatic Fitting Plugs | 276-8639-002 | |
| (1) | Shut-off Valve Fitting | 276-8755 | |
| (1) | Straight Female Fitting | 276-8639-004 | |
| (1) | Tubing Cutter | 276-8083-001 | |
| (1) | V5 Air Pressure Gauge w/Fitting | 276-8748-003 | |
| (1) | V5 Air Pressure Regulator Assembly | 276-8748-001 | |
| (1) | V5 Air Pressure Regulator Bracket | 276-8748-002 | |
| (1) | V5 Double Acting Solenoid Driver Cable | 276-8752-001 | |
| (1) | V5 Pneumatic Tubing (Black, 3m) | 276-8083-000 | |
| (5) | VEX “T” Pneumatic Fittings | 276-8638-000 |
