V5 Competition Starter Kit

VEX V5kit

276-7130

Take educational robotics to the next level by competing in the VEX Robotics Competition. The V5 Competition Starter Kit includes a complete V5 control system, aluminum structural elements, and high-strength parts so that a team of students can build a bigger, stronger, and faster robot. Compete with over 11,000 worldwide VEX Robotics Competition teams Lightweight aluminum structure designed specifically for competition Scalable programming software suite available with VEXcode Recommended: one competition team per kit. Please note that the following parts are not listed in the kit contents: (1) V5 Robot Battery Cable (2) Brain Attachment Flange - Short (2) Brain Attachment Flange - Long (1) V5 Claw Assembly (26) High Strength Metal Gear Insert (16) Free-Spinning Gear Inserts (2) 1x2x1x15 Aluminum C-Channels (2) 2x2x14x20 Aluminum Angles (4) 2x2x25 Aluminum Angles (1) V5 Clawbot Instruction Manual

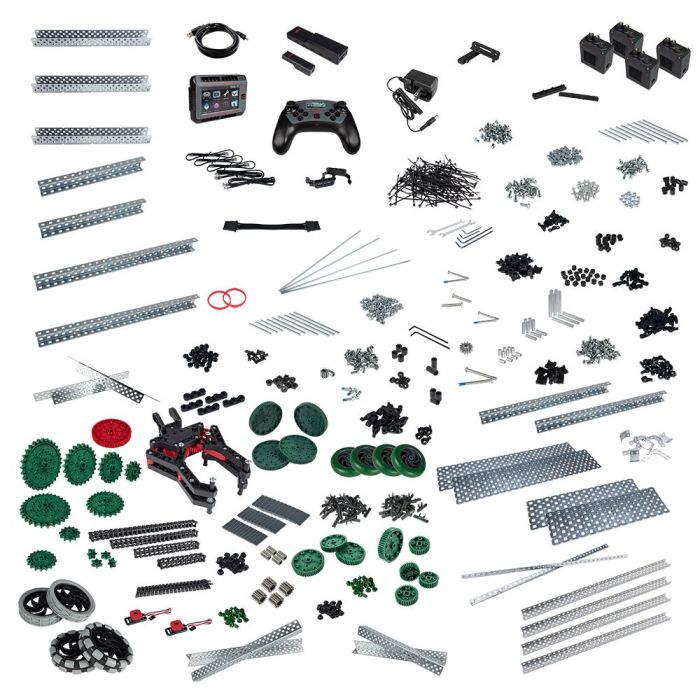

69 unique parts · 1161 total pieces

V5 Competition Starter Kit
QtyPartSKU
(32)#8-32 Hex Nut275-1028-000
(200)#8-32 Nylock Nut275-1027-000
(27)#8-32 x 1.000" Star Drive Screw276-4996-000
(29)#8-32 x 1/2" Locking Star Drive Screw276-5007-000
(25)#8-32 x 1/2" Star Drive Screw276-4992-000
(25)#8-32 x 1/4" Locking Star Drive Screw276-5006-000
(82)#8-32 x 3/8" Star Drive Screw276-4991-000
(6)0x2 Connector Pin228-2500-086
(25)1-Post Hex Nut Retainer276-6482-000
(35)1-Post Hex Nut Retainer w/ Bearing Flat276-6481-000
(8)1.00" Standoff275-1016-000
(8)1/2" OD x #8 Nylon Spacer, 0.125"275-1066-001
(20)1/2" OD x #8 Nylon Spacer, 0.250"275-1066-002
(28)1/2" OD x #8 Nylon Spacer, 0.375"275-1066-003
(13)1/2" OD x #8 Nylon Spacer, 0.500"275-1066-004
(20)1/2" Standoff275-1014-000
(2)12T High Strength Sprocket276-3877-000
(5)12T Metal Pinions276-2251-001
(2)18T High Strength Sprocket276-3878-000
(2)1x1x35 Aluminum Angle276-6484-000
(4)1x2x1x25 Aluminum C-Channel276-2288-000
(6)1x2x1x35 Aluminum C-Channel276-2289-000
(40)2.00" Standoff275-1018-000
(4)2.75" (220mm Travel) Anti-Static Wheel276-8098-000
(2)24T High Strength Sprocket276-3879-000
(4)24x Pitch Shaft228-2500-269
(3)2x2x2x20 Aluminum U-Channel276-7285-000
(2)30T High Strength Sprocket276-3880-000
(4)36T High Strength Gear276-5034
(2)4" (320mm Travel) Anti-Static Wheel276-8103-000
(100)4" Zip Ties276-1032-000
(27)4-Post Hex Nut Retainer276-6483-000
(4)4x Pitch Shaft228-2500-120
(4)5x25 Aluminum Plate276-2311-000
(4)60T High Strength Gear276-5035
(4)6T High Strength Sprocket276-3876-000
(6)6x Pitch Shaft228-2500-122
(1)7x Pitch Shaft228-2500-123
(5)84T High Strength Gear v2276-7749-000
(5)8x Pitch Shaft228-2500-124
(4)90-Degree Gusset Angle276-2577-001
(4)90-Degree Gusset Plate276-2577-002
(12)Bearing Flat276-1209-000
(2)Bumper Switch v2276-4858-000
(30)Conveyor-belt Base Links276-2214-002
(8)Drive Shaft Bar Lock275-1065-000
(20)High Strength Chain Attachment Link276-2252-002
(140)High Strength Chain Links276-2252-001
(9)High Strength Shaft Adapter (1/8" Square Bore, 1/2" Long)276-8235-000
(10)Medium Conveyor-belt Inserts276-2214-004
(2)Open End Wrench276-4350-000
(25)Rubber Shaft Collar228-2500-143
(10)Short Conveyor-belt Inserts276-2214-003
(2)Synthetic Rubber Band #32275-1089-000
(4)T15 Star Drive Key276-5011-000
(2)T8 Star Drive Key276-5012-000
(10)Tall Conveyor-belt Inserts276-2214-005
(25)Tank Tread Traction Links276-2214-001
(1)USB Cable (A-Micro)228-2785
(2)V5 Battery Clip276-6020-000
(1)V5 Controller276-4820
(1)V5 Robot Battery Charger276-4841-000
(1)V5 Robot Battery Li-Ion 1100mAh276-4811
(1)V5 Robot Brain276-4810
(1)V5 Robot Radio276-4831
(3)V5 Smart Cable - 300mm276-4860-020
(1)V5 Smart Cable - 600mm276-4860-030
(1)V5 Smart Cable - 900mm276-4861-010
(4)V5 Smart Motor276-4840
