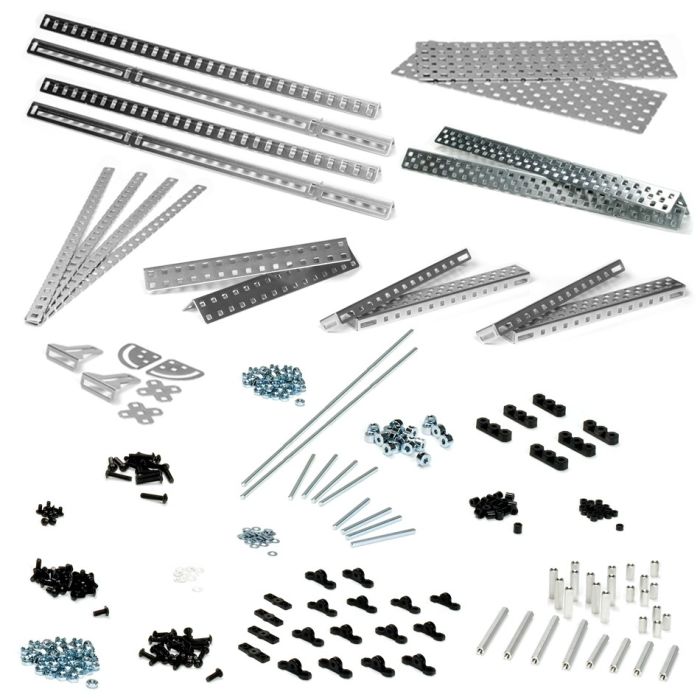

Metal & Hardware Kit
VEX V5kit276-2161
Steel Chassis (2) 2x2x15 Steel Chassis Bumpers (4) 2x1x16 Steel Chassis Rails Steel Plates & Bars (2) 5x15 Steel Plates (4) 1x25 Steel Bars (4) Slotted 30 hole Steel Angles Steel Gussets (2) Angle Gussets (2) Plus Gussets (2) Pivot Gussets Collars & Shafts & Bearings (16) Shaft Collars (4) 2" Shafts (4) 3" Shafts (2) 12" Shafts (16) Flat Bearings (6) Pillow Block Bearings (4) Plastic Lock Plates Standoffs & Spacers (10) 1/2" Standoffs (8) 1" Standoffs (4) 2" Standoffs (4) 3" Standoffs (20) 4.6mm Spacers (20) 8.0mm Spacers Screws & Nuts & Washers (70) #8-32 1/4" Hex Drive Screws (28) #8-32 3/8" Hex Drive Screws (28) #8-32 1/2" Hex Drive Screws (14) #8-32 3/4" Hex Drive Screws (30) Steel Washers (10) Plastic Washers (65) #8-32 Keps Nuts (14) #8-32 Nylock Nuts
25 unique parts · 373 total pieces
| Qty | Part | SKU | |
|---|---|---|---|
| (65) | #8-32 Keps Nut | 275-1026-000 | |
| (14) | #8-32 Nylock Nut | 275-1027-000 | |
| (28) | #8-32 x 1/2" Screw | 275-1004 | |
| (70) | #8-32 x 1/4" Screw | 275-1002 | |
| (14) | #8-32 x 3/4" Screw | 275-1006 | |
| (28) | #8-32 x 3/8" Screw | 275-1003 | |
| (4) | 1 x 25 Steel Bar | 275-1141-000 | |
| (8) | 1.00" Standoff | 275-1016-000 | |
| (10) | 1/2" Standoff | 275-1014-000 | |
| (4) | 2.00" Standoff | 275-1018-000 | |
| (2) | 24x Pitch Shaft | 228-2500-269 | |
| (4) | 3.00" Standoff | 275-1020-000 | |
| (20) | 4.6mm Plastic Spacer | 276-2018-000 | |
| (4) | 4x Pitch Shaft | 228-2500-120 | |
| (2) | 5x15 Steel Plate | 275-2023-000 | |
| (4) | 6x Pitch Shaft | 228-2500-122 | |
| (20) | 8mm Plastic Spacer | 276-2019-000 | |
| (2) | 90-Degree Gusset | 276-1110-002 | |
| (2) | Angle Gusset | 276-1110-003 | |
| (6) | Bearing Blocks | 276-2016-001 | |
| (16) | Bearing Flat | 276-1209-000 | |
| (4) | Lock Bar | 276-2016-002 | |
| (2) | Plus Gusset | 276-1110-001 | |
| (30) | Steel Washer | 275-1024-000 | |
| (10) | Teflon Washer | 275-1025-000 |
