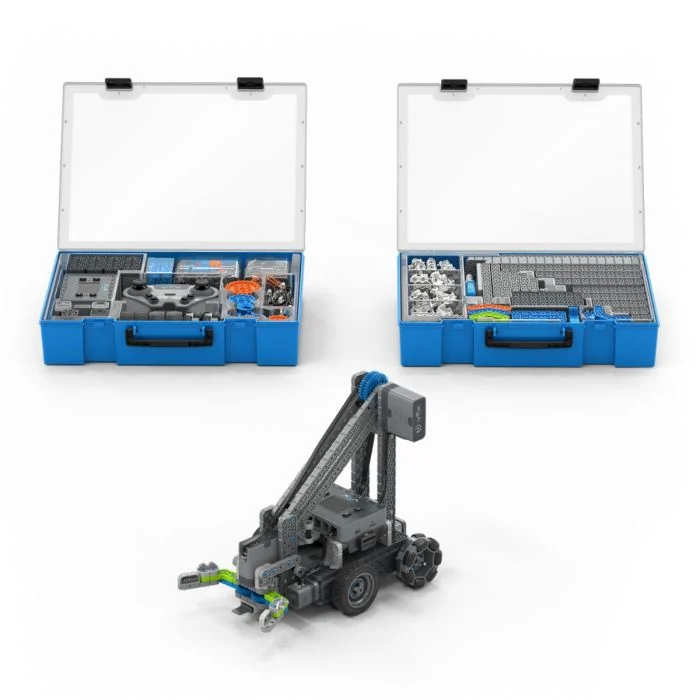

VEX IQ Education Kit (2nd Generation)

VEX IQkit

228-8899

Sample kit seeded for demo. Replace quantities via Admin CMS to match your real BOM.

121 unique parts · 1059 total pieces

QtyPartSKU
(28)0.25x Pitch Spacer228-2500-114
(11)0.25x Pitch Standoff228-2500-063
(13)0.5x Pitch Standoff228-2500-064
(11)0.5x Pitch Standoff Extender228-2500-109
(4)0x1 Sheet Pin228-2500-099
(22)0x2 Connector Pin228-2500-086
(4)0x2 Idler Pin228-2500-084
(21)0x3 Connector Pin228-2500-087
(10)12 Tooth Gear228-2500-213
(4)16 Tooth Sprocket228-2500-233
(5)1x Pitch Plastic Motor Snap Shaft228-2500-328
(13)1x Pitch Standoff228-2500-065
(2)1x Wide Spool228-2500-420
(9)1x Wide, 1x1 Corner Connector228-2500-129
(13)1x Wide, 1x1 Offset Corner Connector228-2500-130
(10)1x1 Beam228-2500-154
(221)1x1 Connector Pin228-2500-060
(6)1x10 Beam228-2500-009
(4)1x12 Beam228-2500-011
(4)1x16 Beam228-2500-014
(5)1x2 Beam228-2500-001
(53)1x2 Connector Pin228-2500-061
(4)1x3 Center Lock Beam228-2500-1141
(7)1x4 Beam228-2500-003
(2)1x4 Crank Arm with 23 Tooth Gear228-2500-246
(5)1x4 Low Profile End Lock Beam228-2500-1548
(2)1x5 Beam228-2500-004
(6)1x6 Beam228-2500-005
(8)1x8 Beam228-2500-007
(4)200 mm Smart Cable228-2780-001
(2)200mm Travel Omni-Directional Wheel228-2500-2536
(4)24 Tooth Gear228-2500-227
(2)24 Tooth Sprocket228-2500-235
(2)24x Pitch Rope228-2500-438
(1)2m USB Cable (A-Micro)228-6901-001
(3)2x Pitch Capped Shaft228-2500-2219
(4)2x Pitch Motor Shaft228-2500-2234
(6)2x Pitch Plastic Motor Shaft228-2500-078
(15)2x Pitch Standoff228-2500-067
(3)2x Wide, 1x1 Offset Corner Connector228-2500-133
(11)2x Wide, 1x2 Corner Connector228-2500-128
(8)2x Wide, 1x2 Offset Corner Connector228-2500-135
(5)2x Wide, 2x1 Corner Connector228-2500-132
(4)2x Wide, 2x1 Offset Corner Connector228-2500-131
(10)2x Wide, 2x2 Corner Connector228-2500-134
(4)2x Wide, 2x2 Offset Corner Connector228-2500-136
(4)2x Wide, 2x3 Corner Connector228-2500-137
(2)2x Wide, 48.5mm Diameter Hub228-2500-1953
(5)2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread)228-2500-1958
(4)2x Wide, 60 Degree Omni 1x2 Corner Connector228-2500-368
(4)2x10 Beam228-2500-025
(6)2x12 Beam228-2500-026
(4)2x16 Beam228-2500-028
(2)2x18 Beam228-2500-029
(5)2x2 Beam228-2500-017
(6)2x2 Center Offset Round Lock Beam228-2500-1925
(21)2x2 Connector Pin228-2500-062
(2)2x20 Beam228-2500-030
(5)2x3 Right Angle Beam228-2500-145
(6)2x4 Beam228-2500-019
(6)2x6 Beam228-2500-021
(2)2x7 Beam228-2500-022
(6)2x8 Beam228-2500-023
(1)2x8 Smooth Panel228-2500-524
(3)300 mm Smart Cable228-2780-002
(6)36 Tooth Gear228-2500-214
(6)3x Pitch Capped Plastic Shaft228-2500-081
(3)3x Pitch Capped Shaft228-2500-2221
(4)3x Pitch Motor Shaft228-2500-2236
(6)3x Pitch Plastic Motor Shaft228-2500-094
(4)3x3 30 Degree Angle Beam228-2500-147
(4)3x3 45 Degree Angle Beam228-2500-148
(4)3x3 60 Degree Angle Beam228-2500-149
(2)3x3 Plate228-2500-031
(4)3x4 Tee Beam228-2500-144
(4)3x5 Right Angle Beam228-2500-150
(1)400 mm Smart Cable228-2780-003
(2)48 Tooth Gear228-2500-228
(3)4x Pitch Capped Shaft228-2500-2223
(4)4x Pitch Motor Shaft228-2500-2238
(6)4x Pitch Plastic Motor Shaft228-2500-079
(2)4x Pitch Shaft228-2500-120
(5)4x Pitch Standoff228-2500-070
(4)4x4 Offset Right Angle Beam228-2500-151
(4)4x4 Plate228-2500-040
(2)4x8 Plate228-2500-043
(4)5x Pitch Capped Plastic Shaft228-2500-083
(2)5x Pitch Capped Shaft228-2500-2225
(1)600 mm Smart Cable228-2780-004
(4)6x Pitch Shaft228-2500-122
(6)6x Pitch Standoff228-2500-072
(4)8 Tooth Sprocket228-2500-232
(9)90 Degree Standoff Connector228-2500-178
(1)Bumper Switch228-2677
(11)Cable Anchor228-2500-188
(101)Chain Link228-2500-230
(5)Double 2x Wide, 1x2 Corner Connector228-2500-271
(2)Double 2x Wide, 2x2 Corner Connector228-2500-220
(4)Double 2x Wide, 2x2 Double Offset Corner Connector228-2500-277
(9)End Standoff Connector228-2500-172
(1)IQ Controller (2nd Generation)228-6470
(1)IQ Distance Sensor228-7106
(1)IQ Optical Sensor228-7082
(1)IQ Robot Battery (Li-Ion, 2000 mAh)228-7045
(1)IQ Robot Brain (2nd Generation)228-6480
(6)Large Chassis Corner Connector228-2500-126
(2)Medium Intake Flap228-2500-241
(13)Mini Standoff Connector228-2500-170
(1)Pin Tool228-4035
(3)Rubber Band Anchor228-2500-157
(32)Rubber Shaft Collar228-2500-143
(3)Short Intake Flap228-2500-240
(1)Silicone Rubber Band #32228-2500-468
(15)Small Chassis Corner Connector228-2500-127
(2)Small Wheel Hub (44 mm)228-2500-1208
(4)Smart Motor228-2560
(2)Tire (200 mm Travel)228-2500-209
(1)Touch LED228-3010
(5)Traction Link228-2500-239
(8)Triple 2x Wide, 2x2 Corner Connector228-2500-1253
(24)Washer228-2500-112
